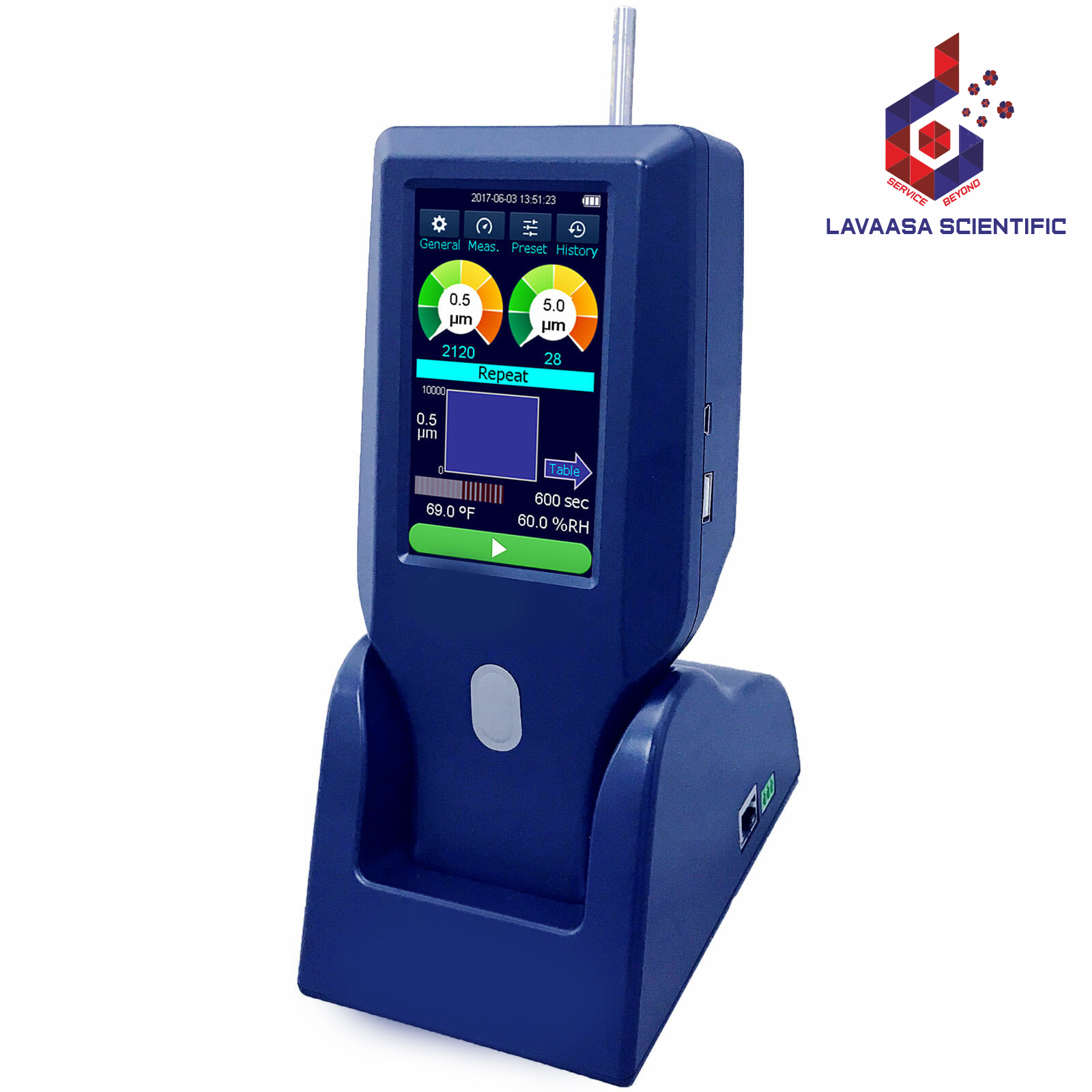

Handheld Particle Counters

The handheld particle counter is an advanced instrument designed for precise particle counting in critical environments such as cleanrooms, operating rooms, filter testing, and indoor air quality (IAQ) investigations. Known for its innovation and accuracy, this model features advanced measurement technology for superior performance. The devices are equipped with a 4.3-inch full-color LCD touchscreen, ensuring a user-friendly interface for easy data interaction and interpretation. They support data transfer via USB, allowing effortless downloads of up to 10,000 records for analysis. Both models comply with ISO 21501-4 and are RoHS compliant, meeting global standards for particle counting and environmental safety. Key features include a minimum sensitivity of 0.3 microns, the ability to display multiple particle sizes simultaneously, and storage for up to a week’s worth of data. The models are compact, lightweight, and ergonomically designed for comfort during extended use. They also offer remote control software, allowing for monitoring and control via PC. Key Points: Measures multiple particle sizes, for upto 6 channels with a minimum sensitivity of 0.3 microns 0.1 CFM flow rate with ±5% accuracy Up to 10,000 measurements stored Large, 4.3-inch color touchscreen for easy data interpretation ISO 21501-4 compliant and RoHS compliant Ergonomically designed for extended use Remote control and easy USB data transfer
Our Products Are…
  • Economically Priced
  • Futuristic Technology
  • Guaranteed Performance with Premium Quality
  • High Reliability
Main Unit Specifications
ProductHandheld Particle Counter
ModelModel IModel II
Particle MeasurementSizes3 channels (0.3, 0.5, 5.0μm)6 channels (0.3, 0.5, 1.0, 3.0, 5.0, 10.0μm)
Flow Rate0.1CFM (2.83L/min)

Accuracy: ±5% (Compliant with JIS B9921 and ISO21501-4)
Maximum Measurable Concentration10% for 2,000,000 particles/CF

(compliant with JIS B9921 and ISO21501-4)
Counting Efficiency50±20% (for PSL particles near the minimum measurable size)

100±10% (for PSL particles of 1.5 to 2 times as large as the minimum
measurable size)

(Compliant with JIS B9921 and ISO21501-4)
False Count≦1 particle/5 minutes

(Compliant with JIS B9921 and ISO21501-4）
Size Resolution≦15% (for PSL particles near 0.3μm)

(Compliant with JIS B9921 and ISO21501-4)
Display4.3 inch color LCD, Resistive touch panel
CommunicationStandardUSB (Host: for printer and USB flash memory, Device: for PC)
Stand (option)RS485, Ethernet, and WiFi connection points in the base/stand
Recording MediaMediaInternal memory
Number and FormatUp to 10,000 records in CSV format
LanguageEnglish, Japanese, Chinese, and Spanish
PowerInternal SupplyLi-ion rechargeable battery (Replaceable)
External SupplyAC adapter – Input 100 to 240 V
Continuous Operation Time5 hours (Single measurement)
OperatingMain BodyFrom 10 to 40 ℃, from 0 to 85%RH (With no condensation)
EnvironmentProbeFrom 0 to 50 ℃, from 2 to 98%RH (With no condensation)
DimensionW213 X H100 X D55 mm
Weight650g
HydrothermalMeasurement Range(Temperature) From 0 to 50℃
Measurement
(Available as an(Humidity) From 2.0 to 98.0％RH
option for the 6-Display Resolution(Temperature) 0.1℃
channel portable
particle counter)(Humidity) 0.1％
 Humidity Accuracy±3.0% (30 to 85%RH), ±5% (other range of humidity)
 Temperature Accuracy±0.5℃
 Response TimeApproximately 60 seconds or less (90％ response)
