Sonicator

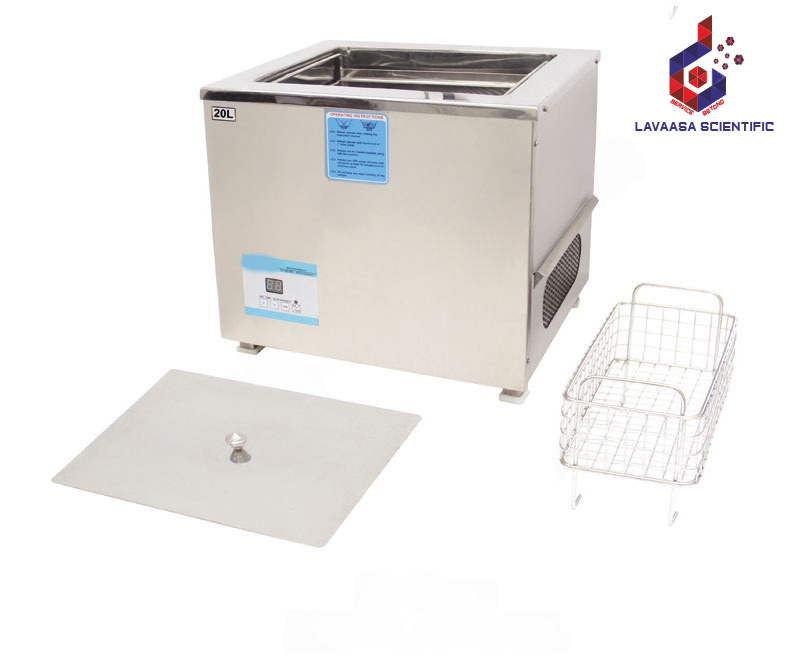

The Ultrasonic Bath Sonicator is a high-performance cleaning system designed to deliver unmatched precision in cleaning delicate and intricate objects. Utilizing advanced ultrasound technology and cavitation effects, it effectively removes dirt, grease, and contaminants from even the smallest crevices. This versatile equipment is ideal for laboratories, industrial applications, medical instruments, and jewelry cleaning. Built with stainless steel tanks and equipped with state-of-the-art electronic controls, the Ultrasonic Bath Sonicator ensures thorough cleaning with maximum efficiency and durability.

Key Features
Advanced Cleaning Technology
Generates high-frequency ultrasound waves for superior cleaning performance.
Cavitation bubbles effectively reach tight and intricate spaces.

Durable Stainless Steel Construction
Single-piece, corrosion-resistant SS tank for long-term reliability.

Precision with Auto-Tuning
Integrated MOSFET technology with auto-tuning ensures optimal performance and frequency stability.

Wide Application Versatility
Suitable for cleaning laboratory glassware, electronic components, medical tools, and fine jewelry.

User-Friendly Design
Simple operation with intuitive controls and compact, space-saving construction.

Enhanced Circuit Protection
Electronic circuits are extensively protected, ensuring safer and longer operation cycles.

Energy Efficiency
Optimized power consumption to reduce energy costs while maintaining high cleaning standards.

Specifications

Specification	Details
Operating Frequency	33 ± 3 KHz, recommended for general-purpose cleaning; 40 KHz also available.
Input Voltage Range	200V AC – 230V AC, 50 Hz, single phase.
Timer Range	Microcontroller-based timer: 0 to 15 minutes (up to 3.5 liters), 30/99 minutes also available.
Heating	Thermostatic heating.
Temperature Control	Digital temperature controller, degassing, PSP (optional) if required.
Custom Capacity	Higher capacity options available as per customer requirements.
Basket Options	Different shapes and sizes available.
Weight Rings	Rings of different sizes available for various measuring cylinders.
Additional Features	Available with Heater, DTC, PSP, and Degassing as optional add-ons.
