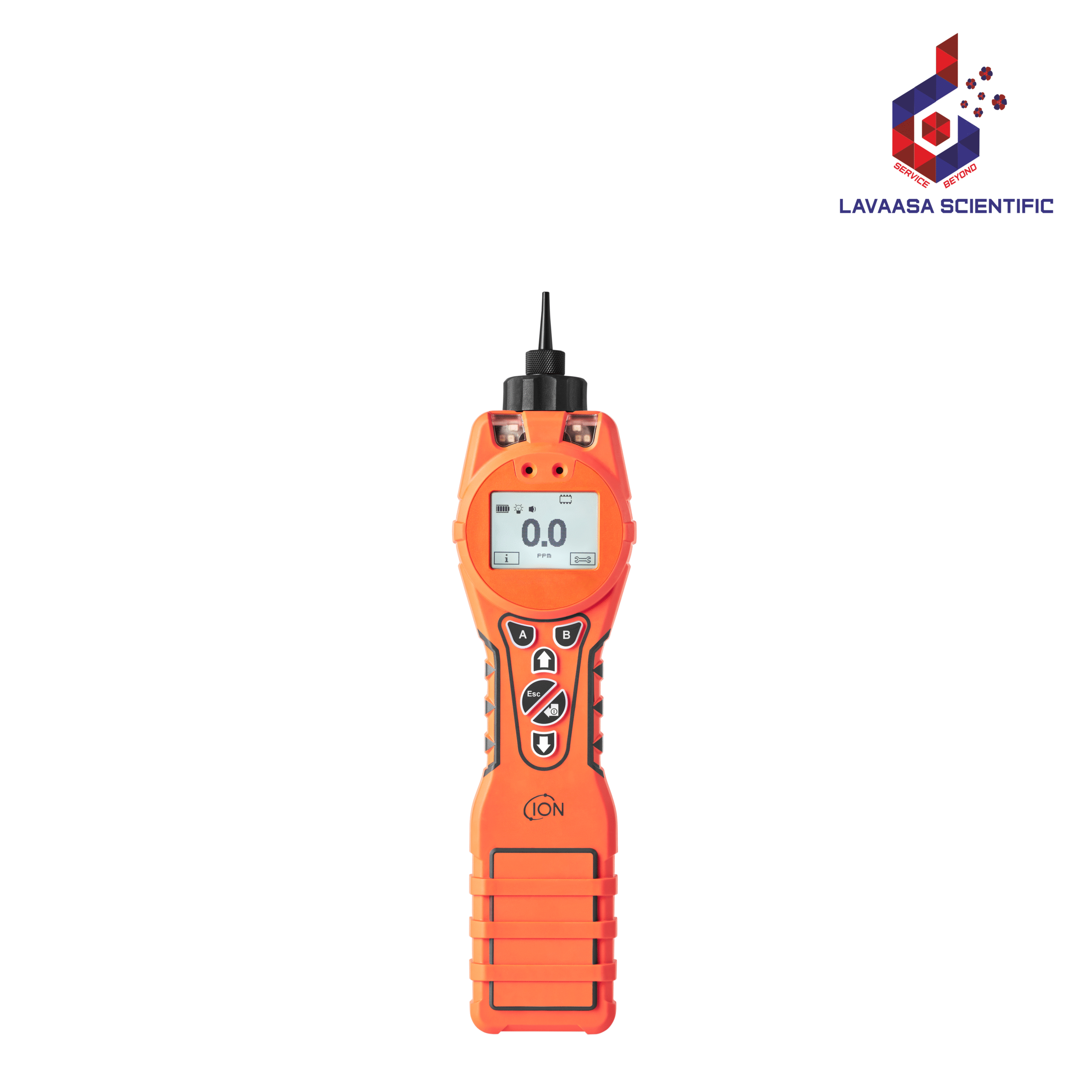

Tiger XTL VOC Gas Detector

The Tiger XTL portable VOC gas detector is a variant of the hugely popular Tiger XT, but low on cost and high on performance. The portable VOC gas detector utilises revolutionary, patented photoionisation detection (PID) sensor technology with humidity resistance. The anti-contamination design provides market-leading accuracy and run-time for any gas detection scenario.

Features
The Tiger XTL portable VOC gas detector offers simple, one-handed operation even when wearing the thickest of gloves. The Tiger XTL has a thermo plastic elastomer outer moulding, this rubber material is semi-conductive making the Tiger XTL intrinsically safe.

The large, clear backlit display allows for easy viewing in any light condition. An integrated torch is designed for directing the instrument’s probe into dimly lit areas. The illuminated keypad activates when the light is low.

The Tiger XTL has a push to release button for the rechargeable battery allowing for quick, easy and secure battery connection.

Improved robust design can withstand harsh environments
IP65 ingress protection against a range of weather conditions
<2 second response time, one of the fastest and most accurate on the market
Instantaneous alarms, RED & AMBER with loud 95 dBA sounder
Humidity resistant and
anti-contamination design ensures optimal performance

The Tiger XTL has been designed with the user in mind for ease of use and servicing. Batteries can be replaced in potentially explosive environments due to the innovative Intrinsically Safe design. Low cost filters and lamps can be easily changed in minutes, minimising instrument downtime.
Our Products Are…
  • Economically Priced
  • Futuristic Technology
  • Guaranteed Performance with Premium Quality
  • High Reliability
Specification Value
Minimum Resolution* 0.1 ppm
Maximum Reading 5,000 ppm
Response Time T90 < 2 seconds
Accuracy* ± 5% display reading or ± 1 digit
Linearity* 5% display reading or ± 1 digit
Intrinsically Safe Approvals II1GExiaIICT4Ga
Tamb = -25 oC ≤Ta ≤+45 oC (with Lithium ion Battery Pack)
Tamb = -25 oC ≤Ta ≤+40 oC (with Alkaline Battery Pack)
IECEx ITS 22.0025X ITS-I22ATEX35111X
ITS22UKEX0635X
3193491 conforms to UL Std. 913, 61010-1 &
Certified to CAN/CSA Std. C22.2 No. 61010-1.
Class 1 Division 1. Approval for groups A, B, C & D, T4.
Battery Life Typical operating time of 24 hours
Typical charge time of 8 hours
Lamps 10.6 eV Krypton PID lamp (standard)
Data Logging* Push-to-log, 128 zones, 80,000 data points
Calibration Standard calibration 100 ppm isobutylene
Custom calibration capability
Alarm Flashing LED and 95 dBA at 300mm (12”) audible sounder selectable vibrating alarm
Flow Rate ≥ 220 ml/min in ambient conditions (with blocked flow alarm)
Humidity 0-99% RH (non condensing)
Protection Designed to IP65
EMC tested to EN61326-1:2013, EN50270:2015 & CFR 47:2008 Class A
Weight & Dimensions 370 mm (H) x 91 mm (W) x 60 mm (D)
870g
