| Specification | Value |
| Sensor Type | MiniPID T2 10.0 eV Sensor |
| Sensitivity | Benzene specific within typical petrochemical matrix |
| Detectable Range | 0.02 ppm – 20 ppm |
| Measuring Frequency | One Minute |
| Lower Level of Detection | 0.02 ppm (20 ppb) (10 ppb resolution) |
| Accuracy | +/- 50 ppb or +/- 10%, whichever is greater* |
| Temperature Stability | Internally heated |
| Flow Rate | Sample flow rate ≥ 100 ml/min |
| Display | Graphic BW LCD 64 x 128 pixels with backlight |
| Bright LEDs for normal operation, fault and alarm | |
| Two magnetic switches for menu operation | |
| Operating Temperature | Recommended operating range of -20 oC to +50 oC (-4 oF to +122 oF) for optimum performance** |
| Approvals | 4FTZU 14 ATEX 0172X |
| Ex II 2G Ex db IIB+H2 T4 Gb | |
| Tamb. = -20 oC to +55 oC | |
| IECEx FTZU 14.0030X | |
| Ex db IIB+H2 T4 Gb | |
| Tamb. = -20 oC to +55 oC | |
| QPS LR1621-1 | |
| Ex db IIB+H2 T4 Gb | |
| AEx db IIB+H2 T4 Gb | |
| Ta= -20 oC to +55 oC | |
| Ingress Protection Rating | IP65 |
| Humidity | 0 – 99 % RH |
| Minimum Service Period | 6 months – PID lamp, electrode stack, inline filter, VRV restrictor, Hydrophobic & carbon filter replacement |
| 12 months – PID lamp, electrode stack, inline filter, VRV restrictor, hydrophobic & carbon filter, Airsep filter | |
| Cable Entry | Two ¾ NPT gland threads |
| Power Requirements | Vin (nom) 24 V DC @ 3.2 A (recommended) |
| Vin (max) 32 V DC @ 2.4 A | |
| Vin (min) 19 V DC @ 4.0 A | |
| Communication | Isolated 4-20 mA output |
| Isolated RS 485 Modbus connection via ASCII or RTU (simplex/half duplex or fully duplex) | |
| Micro USB (PC Software) | |
| Data Storage | On board MMC, minimum of six months (2GB) |
| Relay Output | Two isolated outputs, voltage free, 24 v DC @ 1.25 A |
| Weight and Dimensions | 15 kg (33 lbs) |
| 219 x 219 x 172 mm (8.6 x 8.6 x 6.8” approx.) | |
| Gas Sample Line | 10 m max length, PTFE, 6 mm OD, 4 mm ID |

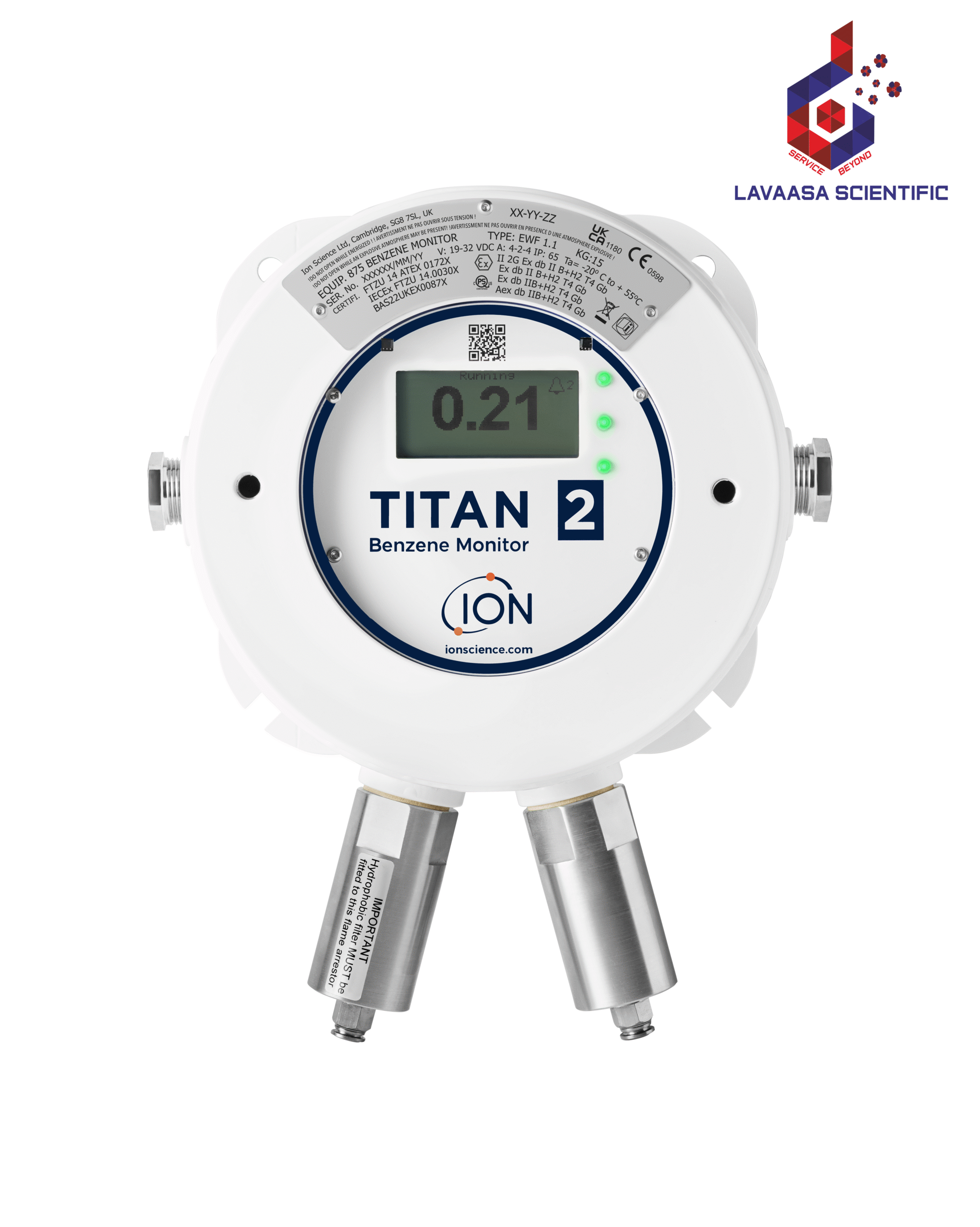

Titan 2 Benzene Gas Monitor
| Monitor and sample benzene with world leading benzene detection technology. Titan 2 benzene gas monitor incorporates the NEW MiniPID T2 10.0 eV Sensor which offers improved sensitivity, reliability and overall performance. The unique sampling method eliminates interfering gases such as toluene, xylene and methane providing you with accurate benzene concentration readings you can rely on.Titan 2 delivers unrivalled accuracy and sensitivity in benzene detection and is ideal for use in a variety of sectors such as oil and gas, bulk storage facilities, chemical manufacturing and processing and asphalt production.Key Featurers : Titan 2 offers a world leading solution for the detection of benzene, providing precise detection at levels as low as 0.02 ppm (20 ppb) and as high as 20 ppm within 60 seconds. Titan 2 benzene gas monitor has been specifically engineered to analyse airborne dangers and can be utilised to evaluate the efficiency of purification or vapour recovery systems/units (VRU). Titan 2 benzene gas monitor has obtained certification for use in ATEX zoned environments and locations. Furthermore, the enclosure is IP65 rated, offering reliable protection against the intrusion of dust and water. New MiniPID T2 10.0 eV Sensor – Unique to Titan 2. Low Detection Limit – Can detect benzene down to 0.02 ppm (20 ppb). IP65 – Protection against a range of atmospheric conditions. Interchangeable Service Module – plug and play cartridge. 4-20 mA & RS485 Communication Options – Connect to your own control system. |
