| Specification | Value |
| Detection Principle | Negative Ion capture (NIC) |
| Sensitivity | Standard:1 x 10-7 cc/sec, 1 ppm, 0.01 g/a |
| HIGHsense: 1.0E-8 cc/sec, 0.1 ppm, 0.001 g/a | |
| Response Time T90 | Approximately 0.5 seconds |
| Response Time T10 | Approximately 0.5 seconds |
| Alarm | Selectable handgun vibration, audio and LED projection |
| Audio | Frequency/ repeat rate coupled to leak rate, condition signals |
| Display | 2.8″ touch display on handgun |
| Self Diagnostic | Sample Flow |
| Sensor Condition | |
| Battery Condition | |
| Hardware Fault | |
| Battery | Handgun LiPo, inductive charge at docking station |
| Console LiFe | |
| Temperatures | Storage : –10 °C to +60 °C |
| Operating: 0 °C to 50 °C | |
| Power Supply | 85 – 265V (50/60 Hz) |
| Dimensions | Console: 420 (H) x 240 (D) x 470 mm (W) |
| Handgun: 300 (H) x 105 (D) x 90 (W) | |
| Weight | Handgun: 750g |

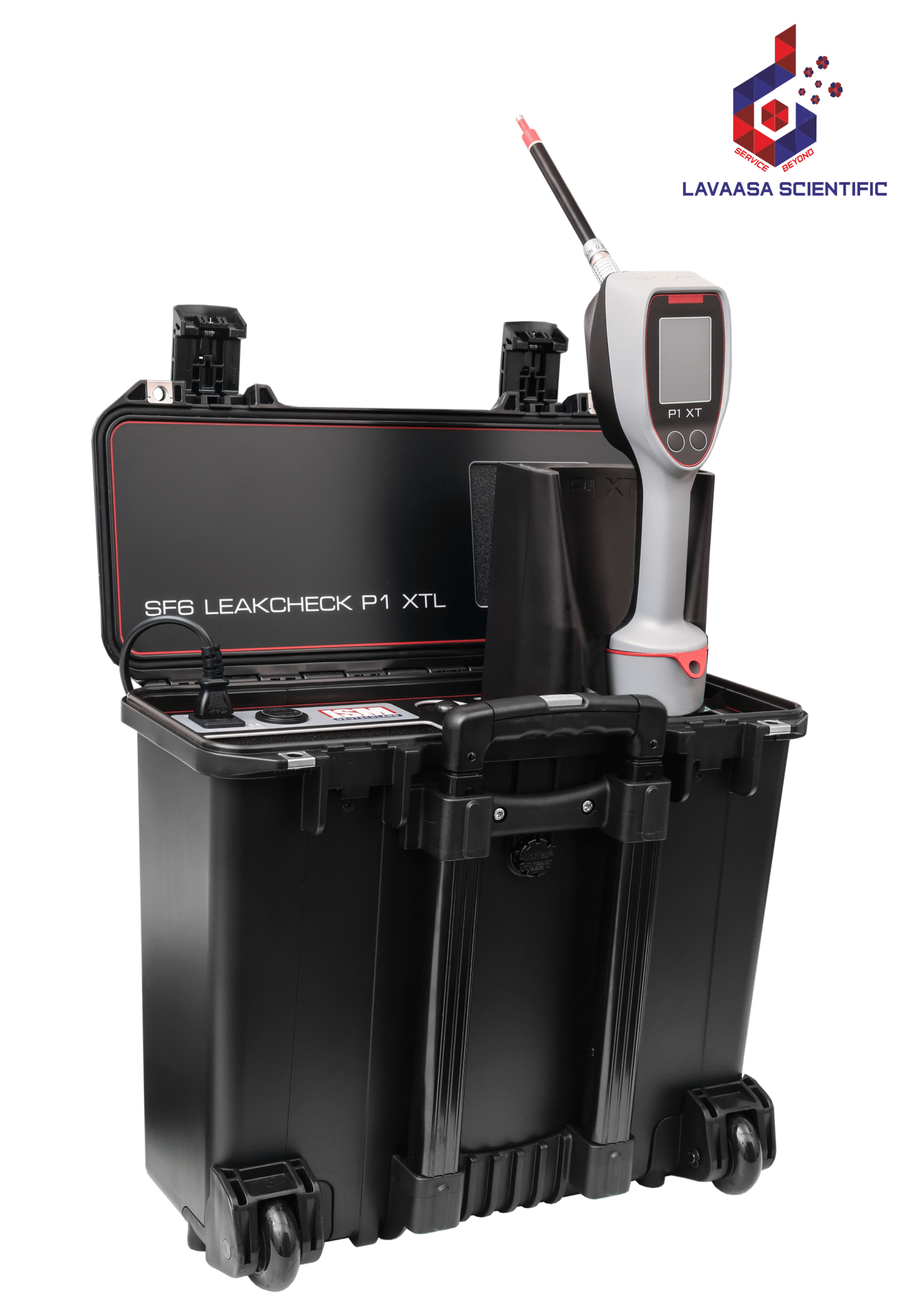

SF6 LeakCheck P1 XTL Leak Detector
| The ultimate solution for the detection of Sulfur hexafluoride. This advanced SF6 Leak Detector is set to redefine safety and environmental monitoring by efficiently detecting a wide range of hazardous gases beyond just sulphur hexafluoride, including C4-FN.Our advanced SF6 Leak Detector operates on the cutting-edge Negative Ion Capture (NIC) detection principle, ensuring precision and reliability. With sensitivity levels that exceed industry standards, our device can detect even the slightest gas leaks, with a standard sensitivity of 1 x 10-7 cc/sec, 1 ppm, and 0.01 g/a. For high-sensitivity applications, it boasts an impressive sensitivity of 1.0E-8 cc/sec, 0.1 ppm, and 0.001 g/a. Rapid response is a key feature, as our system achieves a T90 response time of approximately 0.5 seconds and a T10 response time of approximately 0.5 seconds.You have the flexibility to choose your preferred alert method, be it selectable handgun vibration, audio signals, or LED projection. The audio alerts are intelligently tied to leak rate and condition signals for enhanced situational awareness. Our device is equipped with a user-friendly 2.8-inch touch display on the handgun, making it easy to monitor and control. Additionally, it offers robust self-diagnostic capabilities, checking sample flow, sensor condition, battery condition, and hardware faults. You can count on reliable power with a LiPo battery in the handgun and inductive charging at the docking station, while the console relies on LiFe batteries. It can operate in a wide range of temperatures, from -10 °C to +60 °C for storage and 0 °C to 50 °C during operation. For added convenience, it accommodates a global power supply of 100 – 240V (50/60 Hz). Trust in our gas leak detection system to ensure safety and peace of mind in various environments.Key Features : Easy to use – The SF6 Leak Detector is designed with ease of use in mind. High Sensitivity – This instrument has high sensitivity for both leak rates and gas concentrations. Easily Transportable – The trolley style protector case allows the instrument to be easily moved from one place to another. Immune to 100% SF6 – Even after exposure to high gas concentrations, the instrument recovers without any loss in sensitivity, accuracy or response time. (For more information on SF6, click here.) Negative Ion Capture Technology – This instrument utilises the award winning Negative Ion Capture (NIC) Technology. Fast Response Time & Clear Down – The SF6 instrument requires no warm up or stabilisation time and has a response time of <0.5 seconds. |
